Horizontal pumps
AP pump series
Applications: Open systems, domestic water, closed systems, industrial systems Materials: Housing: Bronze CuSn10Zn2 Impeller: Bronze CuSn10Zn2 Liquids: Warm and cold oxygenated water, chlorinated water, seawater, alcohol solutions, other heat transfer fluids Applications: Open systems, domestic water, closed systems, industrial systems

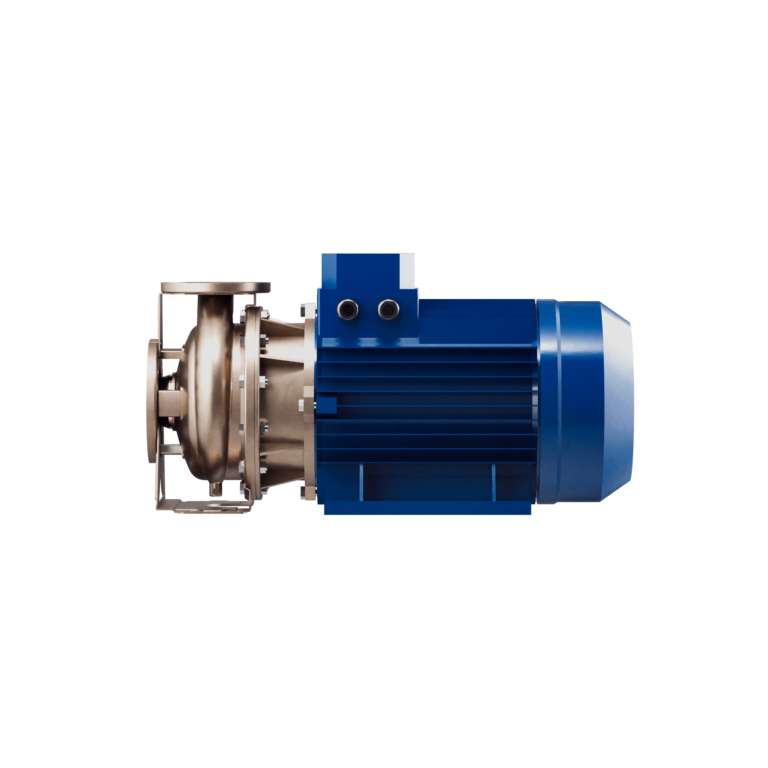

K-pump series
Applications: Residential construction, schools and daycare centers, spas and swimming pools, shipbuilding and flue gas scrubbers, business parks, shops and shopping centers, pressure maintenance, pressure boosting and irrigation systems, process industry, hospitals, health centers and nursing homes. Materials: Cast iron, stainless steel and acid-resistant Liquids: Clean liquids

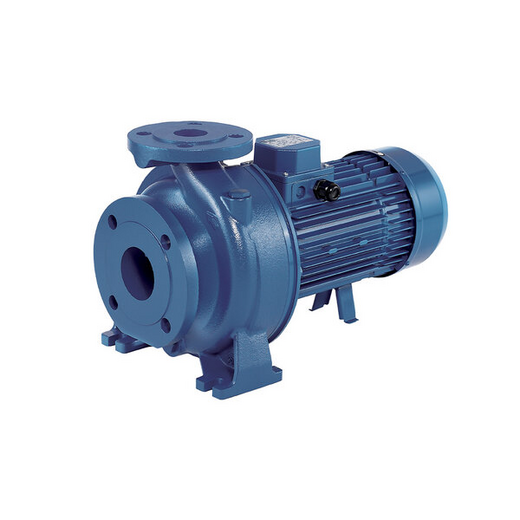

KD pump series
Applications: Residential construction, commercial properties, shops and shopping malls, schools and daycare centers. Clean liquids, heating networks, secondary and primary circuits of district heating, heating and cooling systems of buildings, cooling water circulation, fire water pumping, glycol mixtures, service water, hot and cold water, boiler feed water, condensate water, industrial cooling water circulation, cooling water […]
KM pump series
Applications: Residential construction, commercial properties, shops and shopping malls, schools and daycare centers. Clean liquids, heating networks, secondary and primary circuits of district heating, heating and cooling systems of buildings, cooling water circulation, fire water pumping, glycol mixtures, service water, hot and cold water, boiler feed water, condensate water, industrial cooling water circulation, cooling water […]
Pumpselector
Choosing the right pump model for your specific requirements.
Structure and characteristics of horizontal pumps
Kolmeks horizontal pumps are horizontal monoblock centrifugal pumps with dry electric motors that meet the requirements of the EcoDesign directive.
The pump impeller is mounted directly on the electric motor shaft without separate couplings. The electric motor has high efficiency, low noise and is suitable for frequency converter use. The electric motor bearings are permanently lubricated and maintenance-free. The pump flanges are suitable for
counter flanges dimensioned in accordance with the ISO 7005 directive.
Sizes and material options
The range of horizontal pumps covers pump sizes DN32 – DN65. In horizontal pumps, the suction flange is often larger than the pressure flange. The pumps are available in cast iron and in stainless steel AISI304 and AISI316.
Typical applications
The most common applications are industrial washing machines and pressure boosting.
Suitability for different fluids and systems
Horizontal centrifugal pumps can be used as process, circulation, pressure boosting and transfer pumps for clean oxygen-rich or aggressive liquids.
24/7 maintenance and spare parts services
Kolmeks provides spare parts and maintenance services for pumps and air separators. We service pumps of various sizes reliably and professionally, ensuring their efficient and trouble-free operation.
We offer responsive maintenance support and spare parts services to keep our customers’ systems up and running in all situations.
