In-line variable speed pumps with IEC-motor

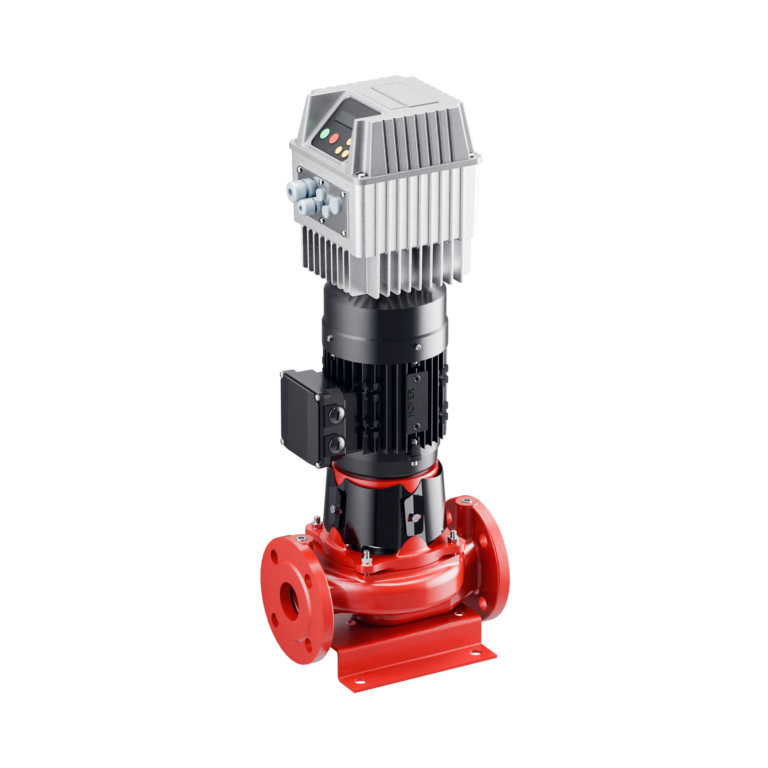

KI MD Pump Series
User-friendly variable frequency drive (VFD) controlled pumps with high efficiency for a wide range of applications. Equipped with an MD frequency converter and an IEC standard electric motor. Applications: Industrial heating networks, district heating, building heating and cooling systems, industrial cooling water circulation, circulation systems, process liquid circulation systems, fire water systems, transfer and circulation […]

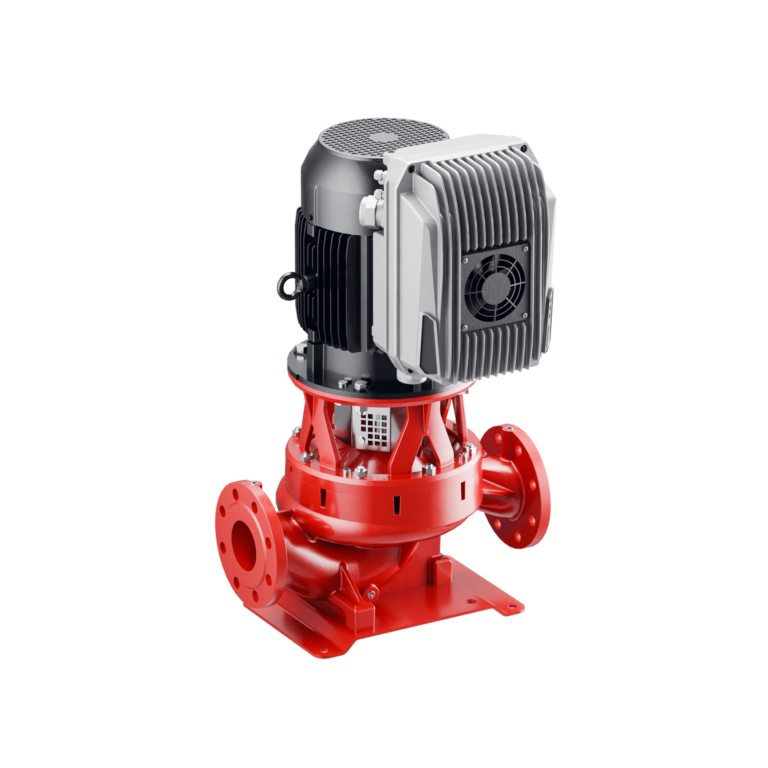

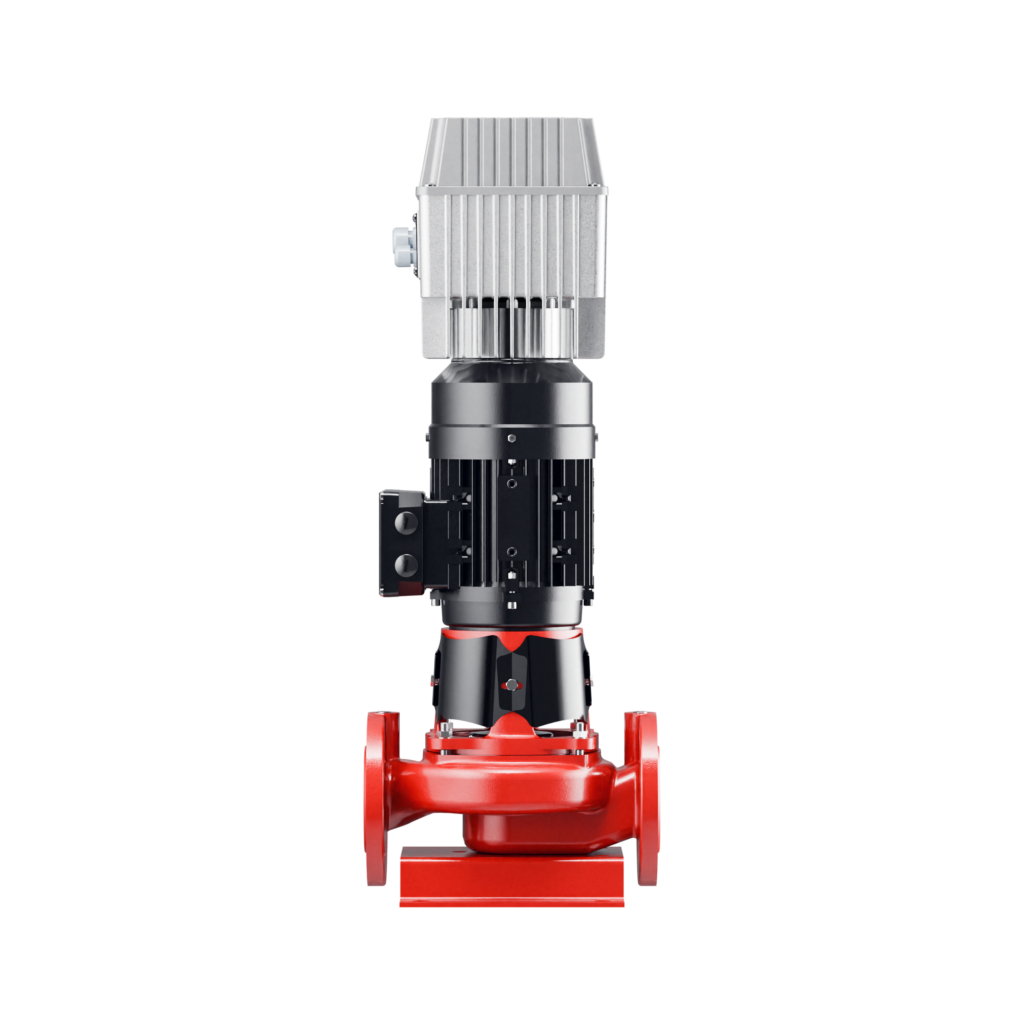

SD NC Pump Series
Pumps with integrated frequency converter for the most demanding conditions. Equipped with an NC variable frequency drive (VFD) and an electric motor complying to IEC standard. Applications: Industrial heating networks, district heating, building heating and cooling systems, industrial cooling water circulation, circulation systems, process liquid circulation systems, fire water systems, transfer and circulation of non-corrosive […]
Pumpselector
Choosing the right pump model for your specific requirements.
Pump Structure, Features and Equipment
Kolmeks MD, SC, and NC series SD pumps are variable frequency drive (VFD) controlled centrifugal pumps with an integrated inverter and IEC-standard motor. The range of VFD pumps with IEC motor covers threaded pump sizes G 1 ½ – G 2 (ISO 228/1) and flanged pump sizes DN32 – DN200 (ISO 7005), with power ratings from 0,08 kW to 15 kW.
The modular structure of the pump allows for easy maintenance and component replacement.
The pumps can be equipped with pressure or temperature transmitters and programmed to be controlled by external automation systems.
Applications
Kolmeks VFD-SD pumps are suitable for circulation, pressure boosting, and transfer of clean liquids in closed and open systems across various applications. Typical applications include heating, ventilation, air conditioning, cooling, and heat recovery systems, heat exchangers, pressure boosting, and water distribution. They are used in industrial facilities, ice arenas, swimming pools, spa facilities and many other locations. In addition, NC pump series applications include demanding applications in power plants, district heating primary circuits, and industry.
A wide range of accessories and optional features is available for the pumps.
Fluid temperature ranges:
- SC & MD: -10 … 90 °C
- NC: -10 … 180 °C (depending on pump type and sealing solution)
Advantages of Kolmeks VFD pump:
- The pump adjusts to the system, ensuring silent operation.
- Pumping capacity is based on actual demand, resulting in lower lifecycle costs.
- Payback period compared to a fixed speed pump is 0.5–2.5 years depending on the model (see example chart).
- Alarms can be connected to external systems.
- The operating point can be precisely adjusted (domestic hot water).
- Operates according to system conditions (radiator and ventilation circulation).
- Energy saving.
- Robust and reliable.
- Extended pipeline network lifetime.
- MD and NC inverter pumps can also be safely controlled remotely via Bluetooth connection.

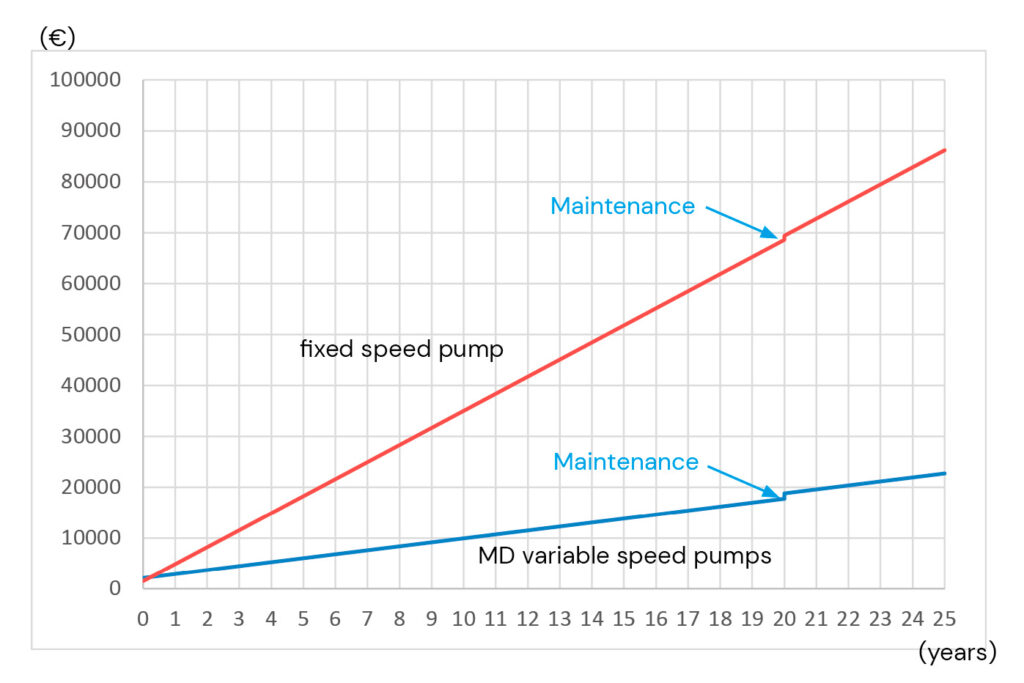

Cost Comparison

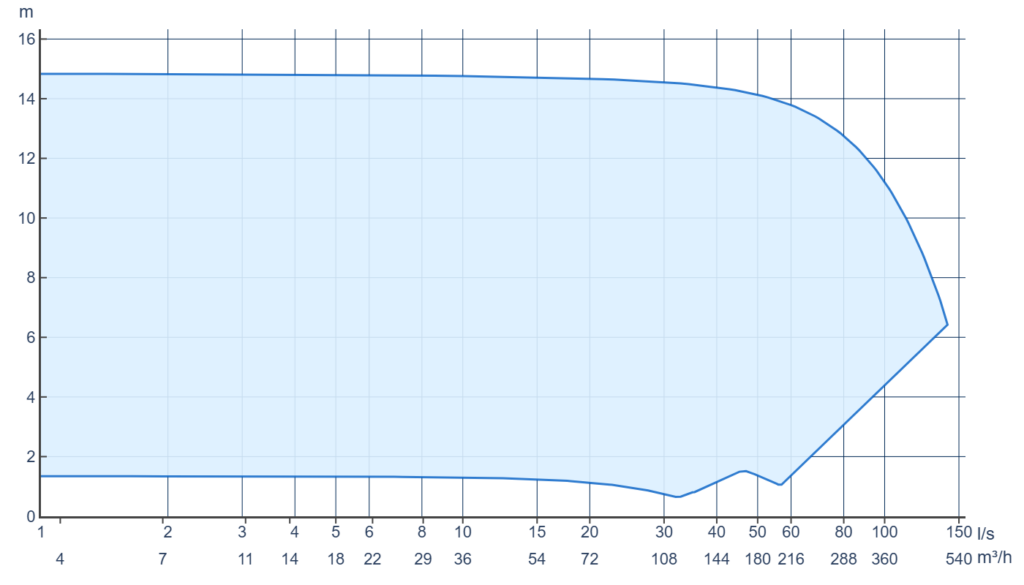

Operating range
24/7 maintenance and spare parts services
Kolmeks provides spare parts and maintenance services for pumps and air separators. We service pumps of various sizes reliably and professionally, ensuring their efficient and trouble-free operation.
We offer responsive maintenance support and spare parts services to keep our customers’ systems up and running in all situations.
