Pumpselector
Choosing the right pump model for your specific requirements.

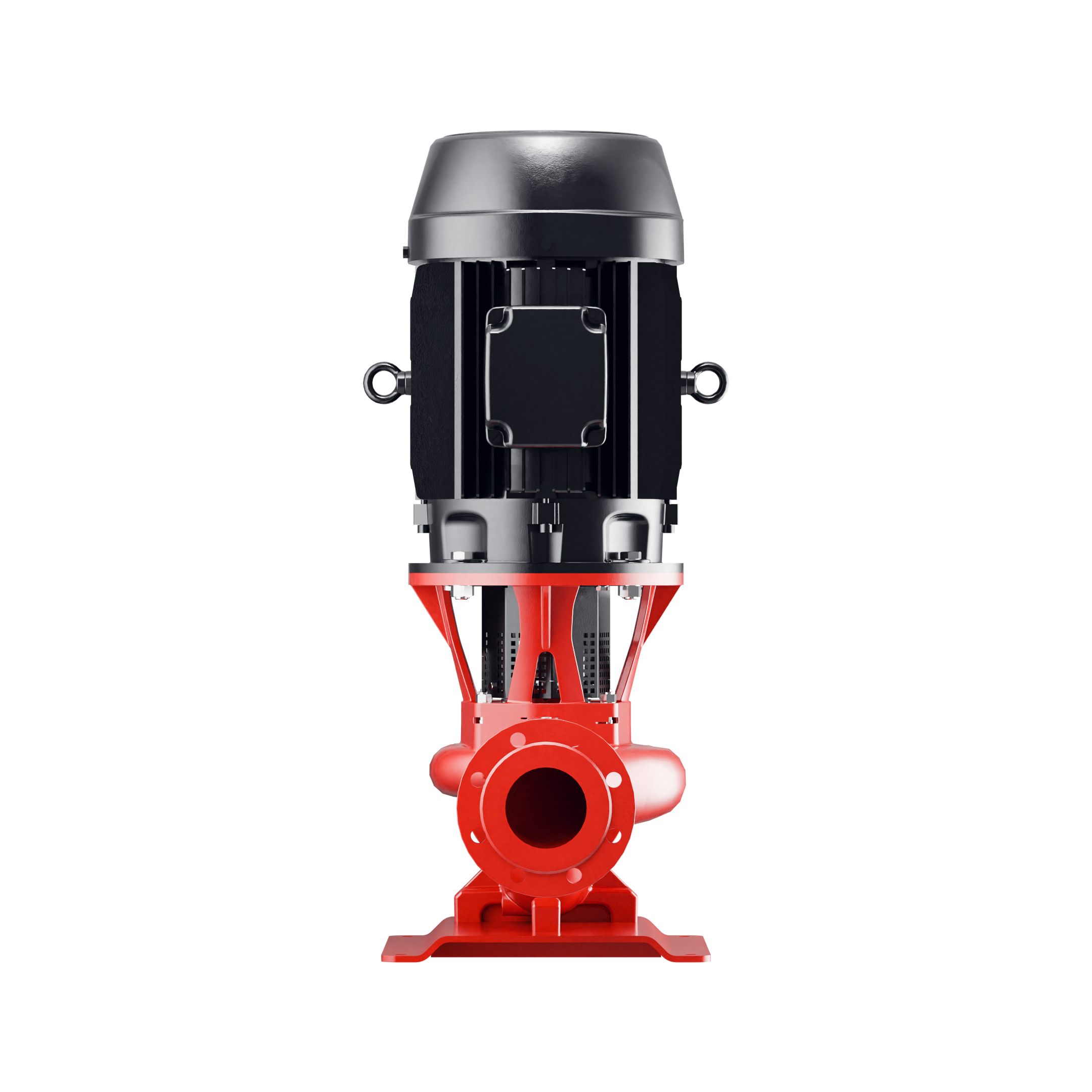

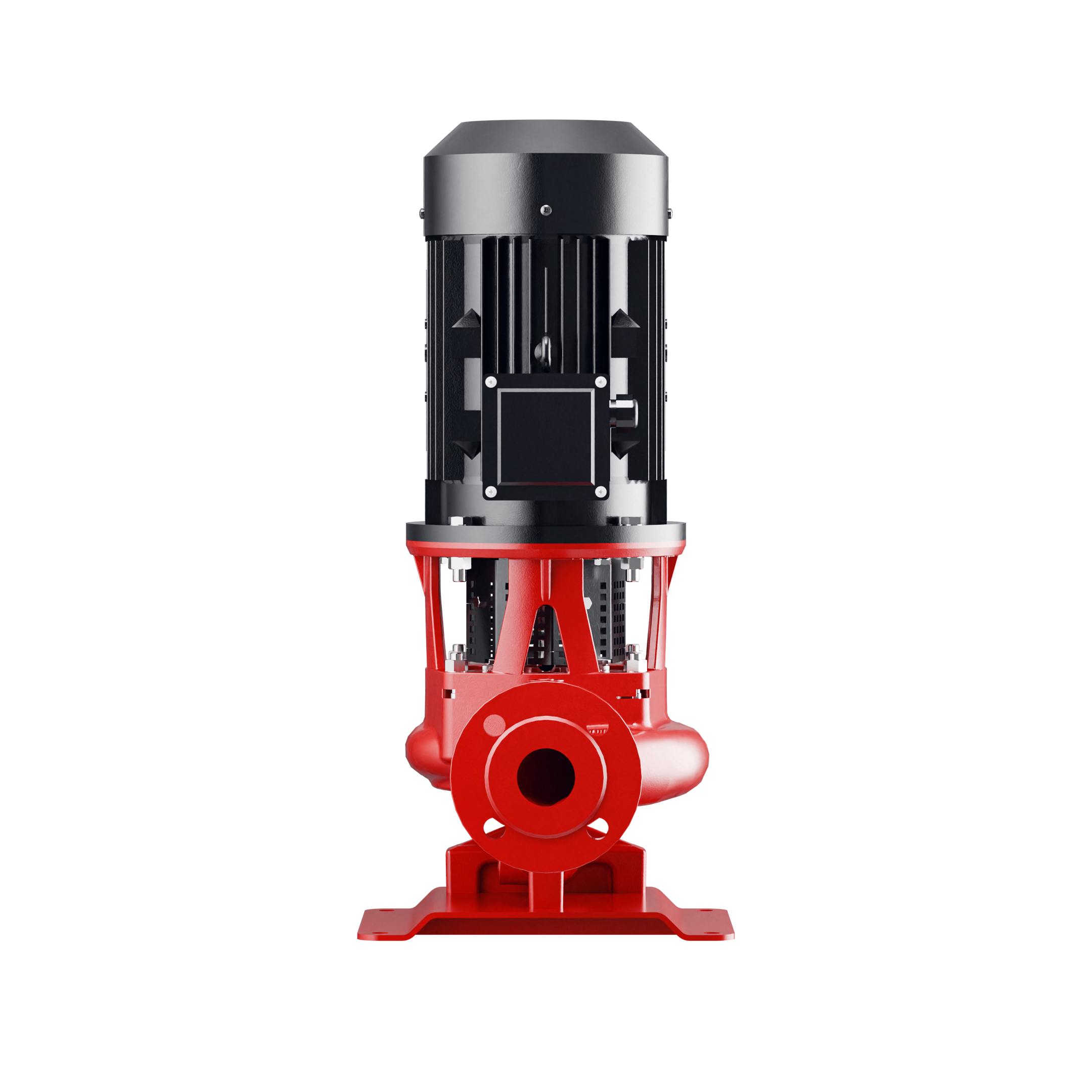

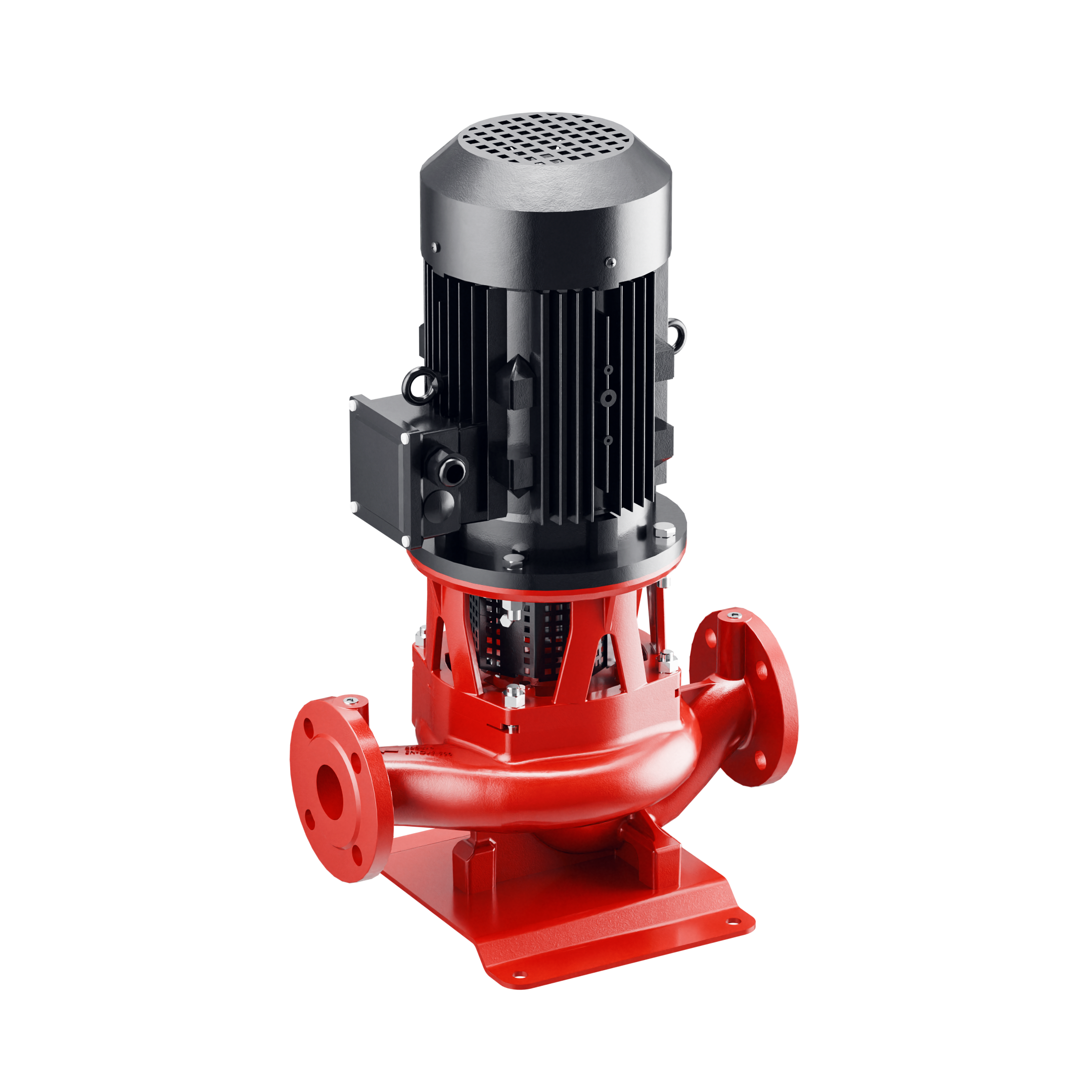

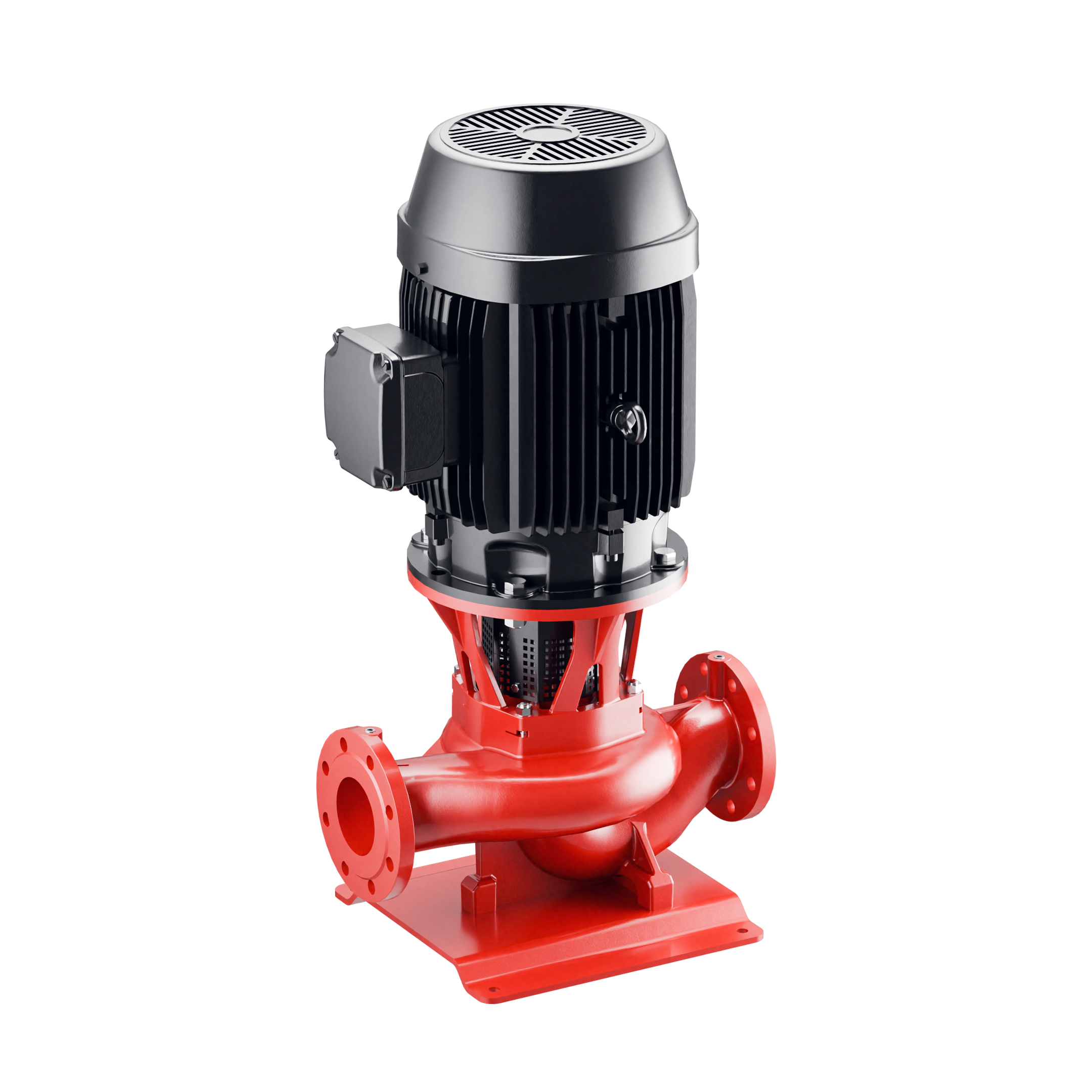

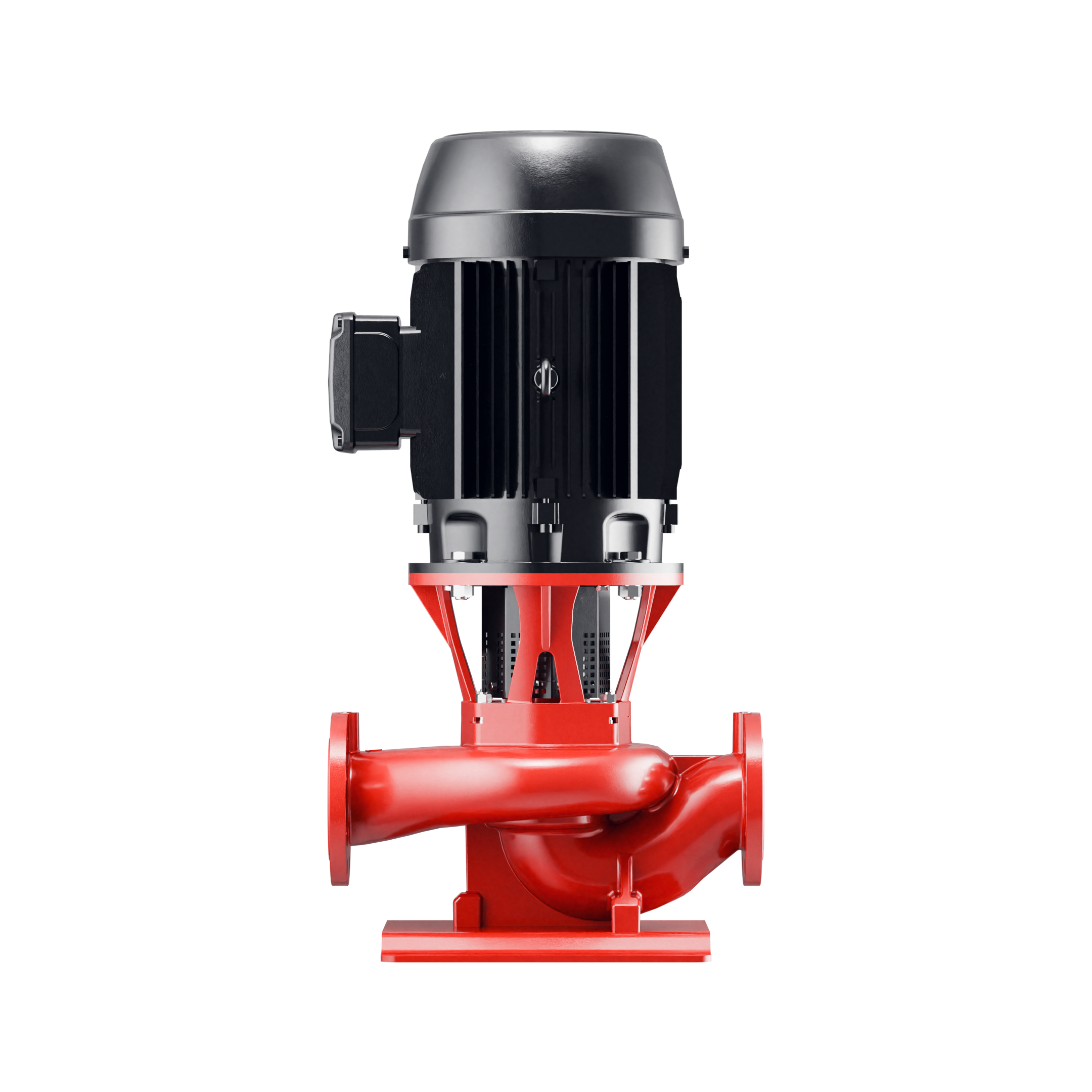

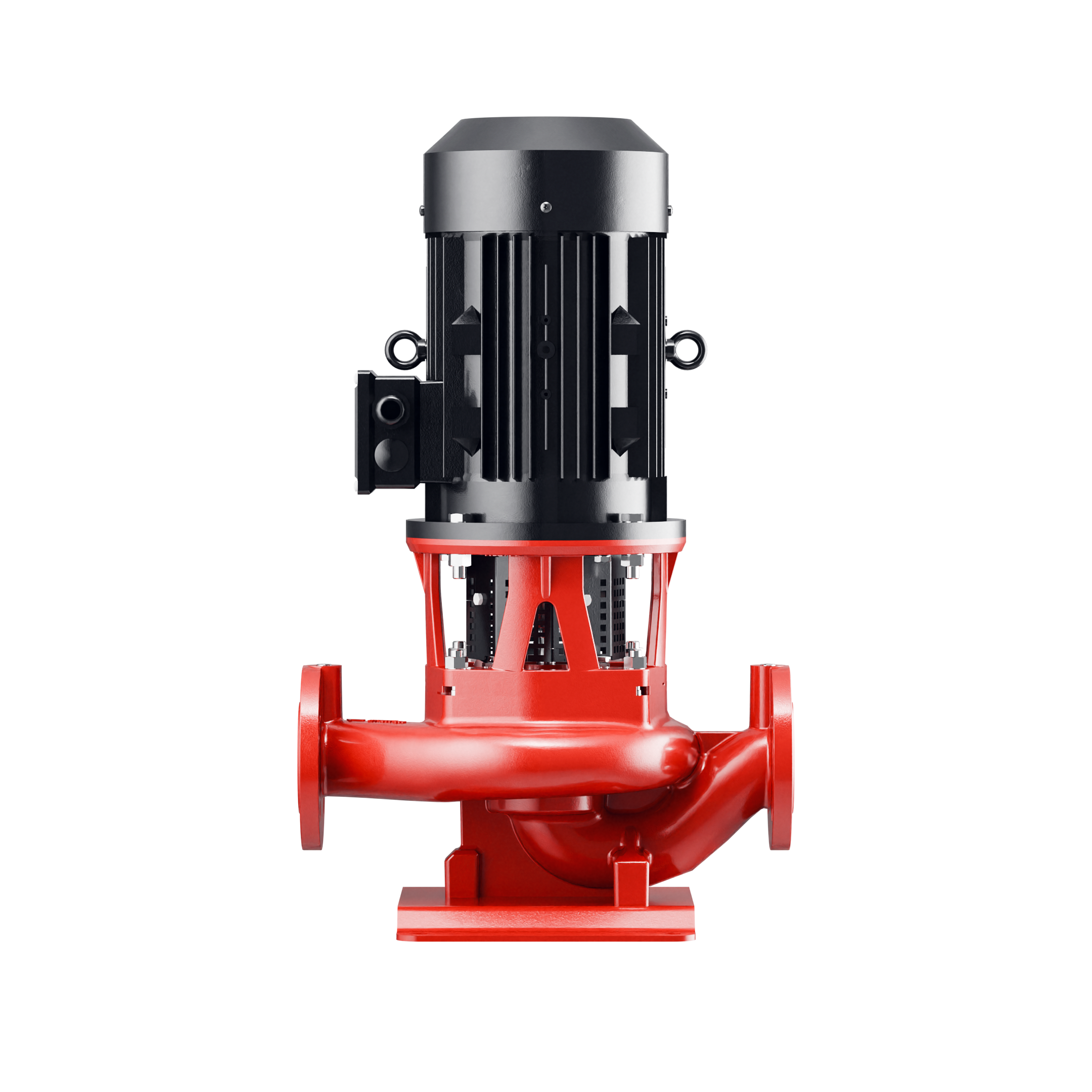

KI Pump Series
Applications:
Building heating and cooling systems, industrial heating and cooling water circulation, district heating, process fluids, water treatment and pressure boosting systems, boiler feed and condensate circuits, washing systems, chemical transfer and circulation in process and chemical industries, pulp and paper industry, chemical circulation in surface treatment plants, as well as cooling and auxiliary systems in the marine industry.
Materials:
- Duplex A890 Grade 3A
- Grey cast iron EN-GJL-200
- Ductile cast iron EN-GJS-400
Technical specifications
| Models | |
|---|---|
| Maximum pump head | 107 m |
| Liquid temperature range | -25…+150 °C |
| Motor power range | 0.37 …75 kW |
| Nominal pressure | PN10, PN16 |
