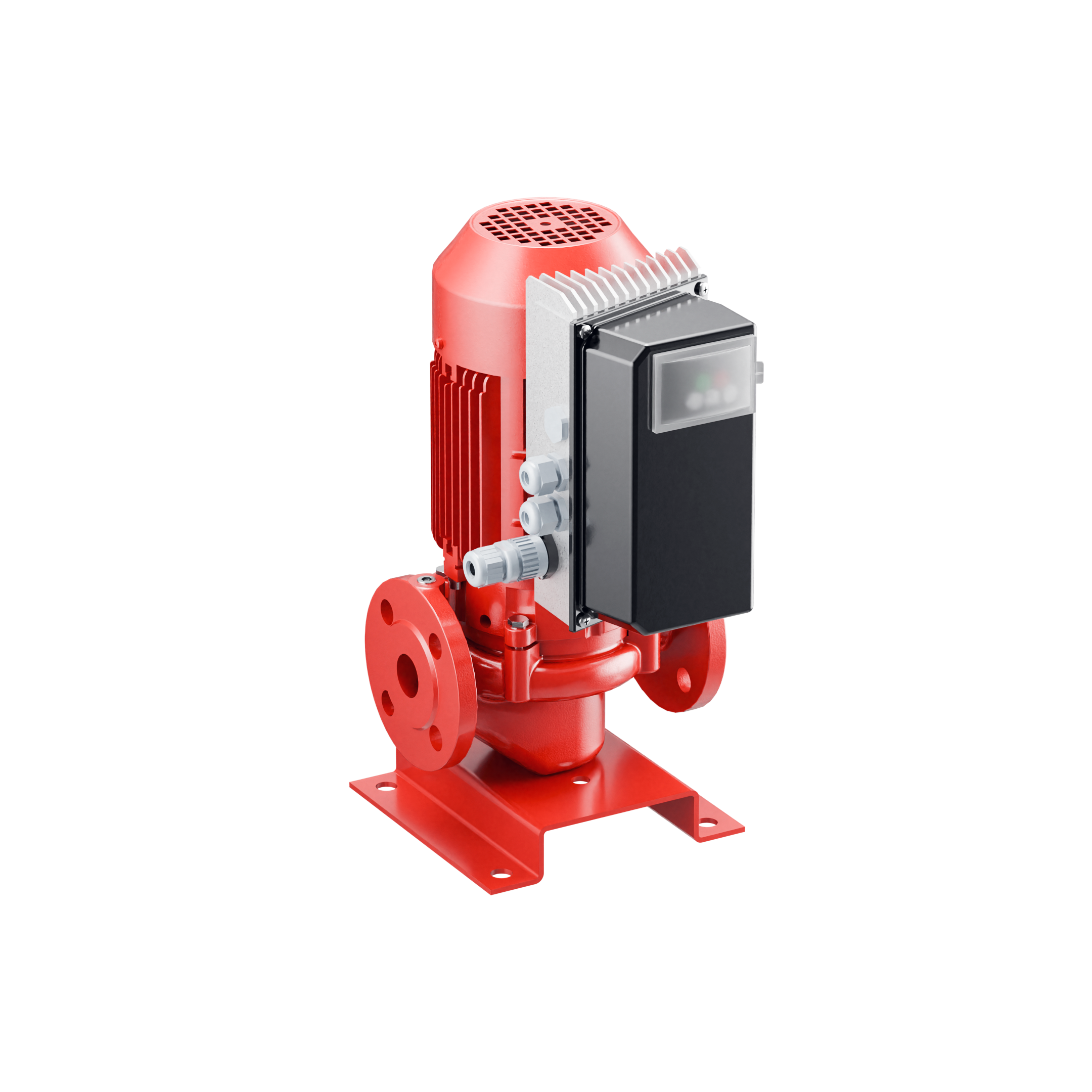

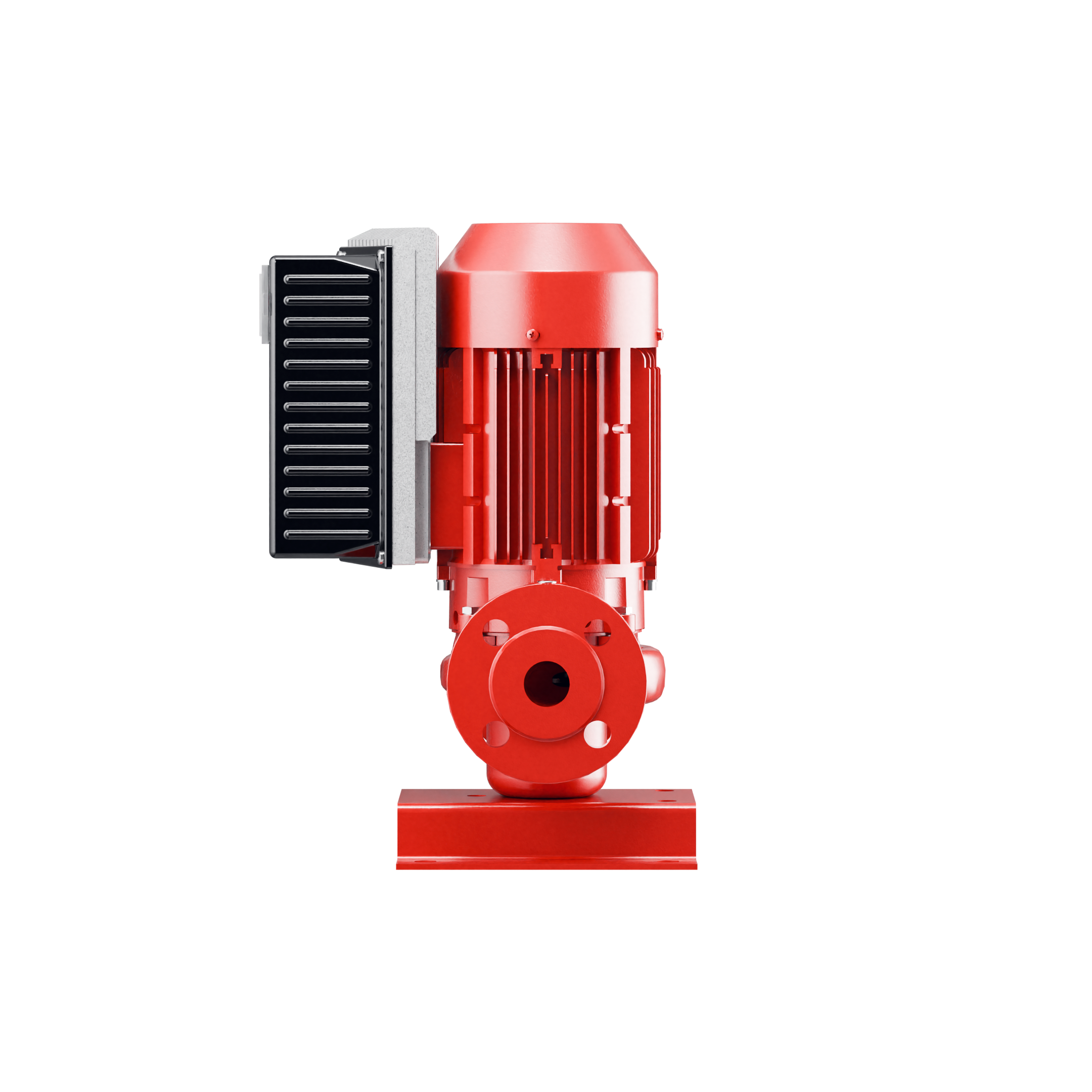

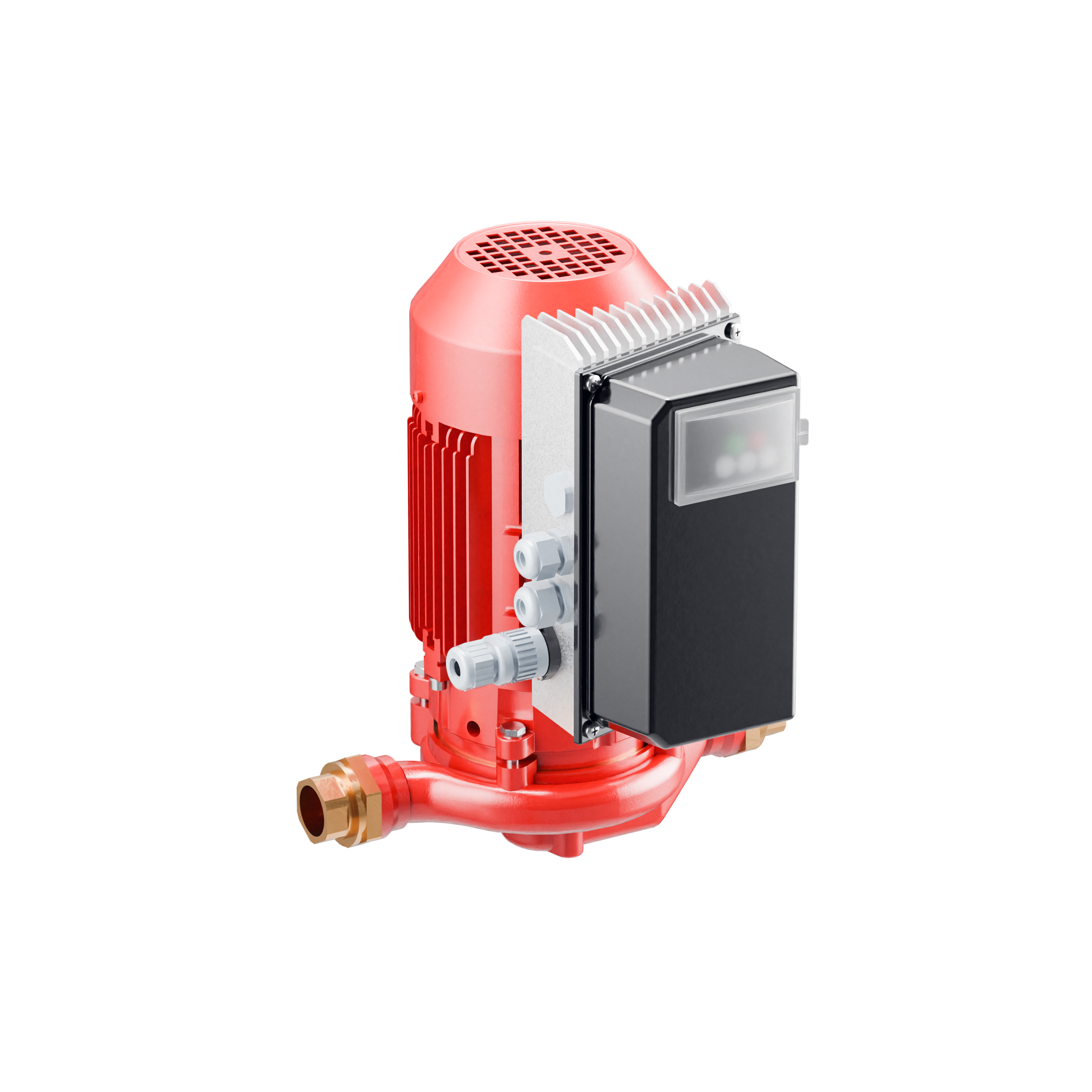

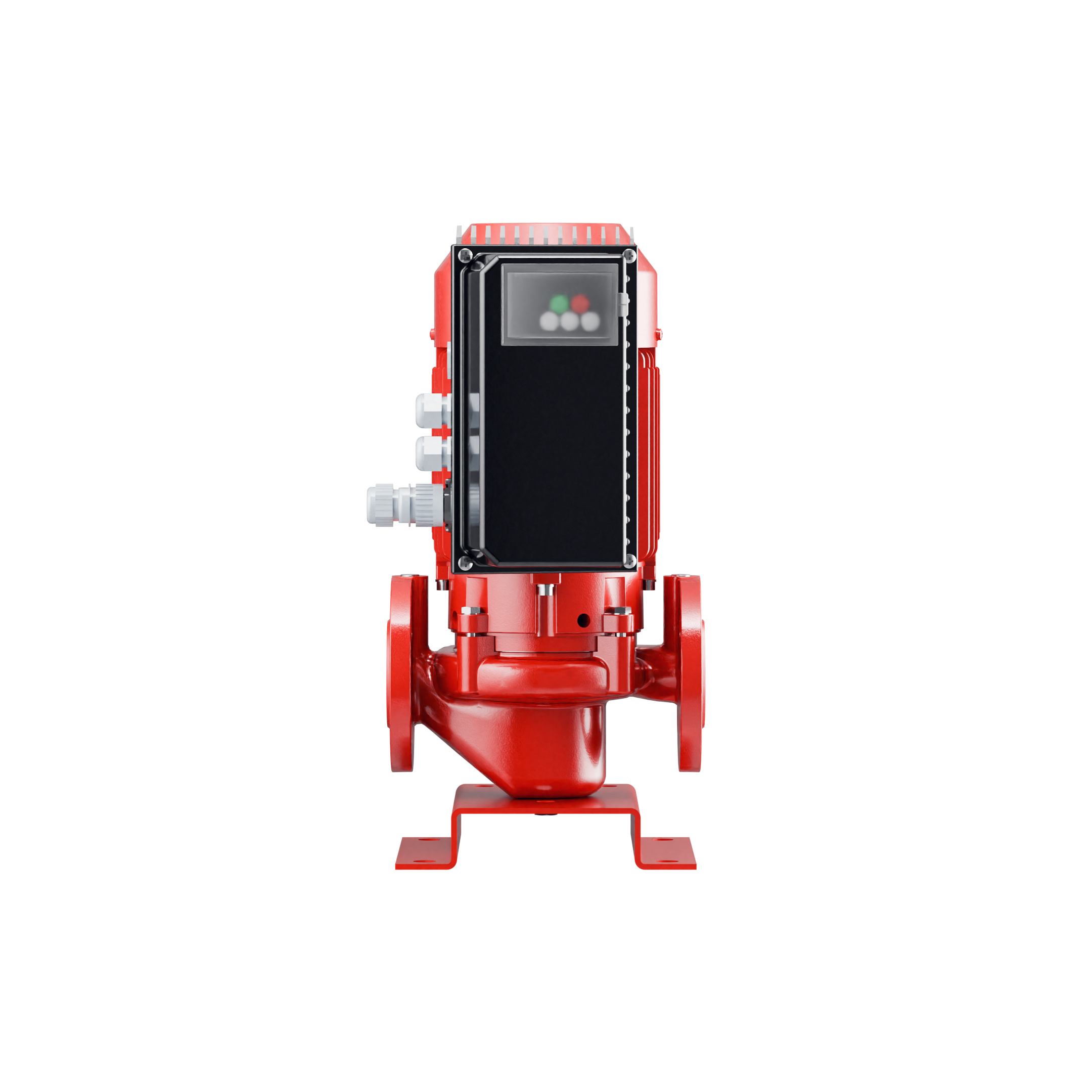

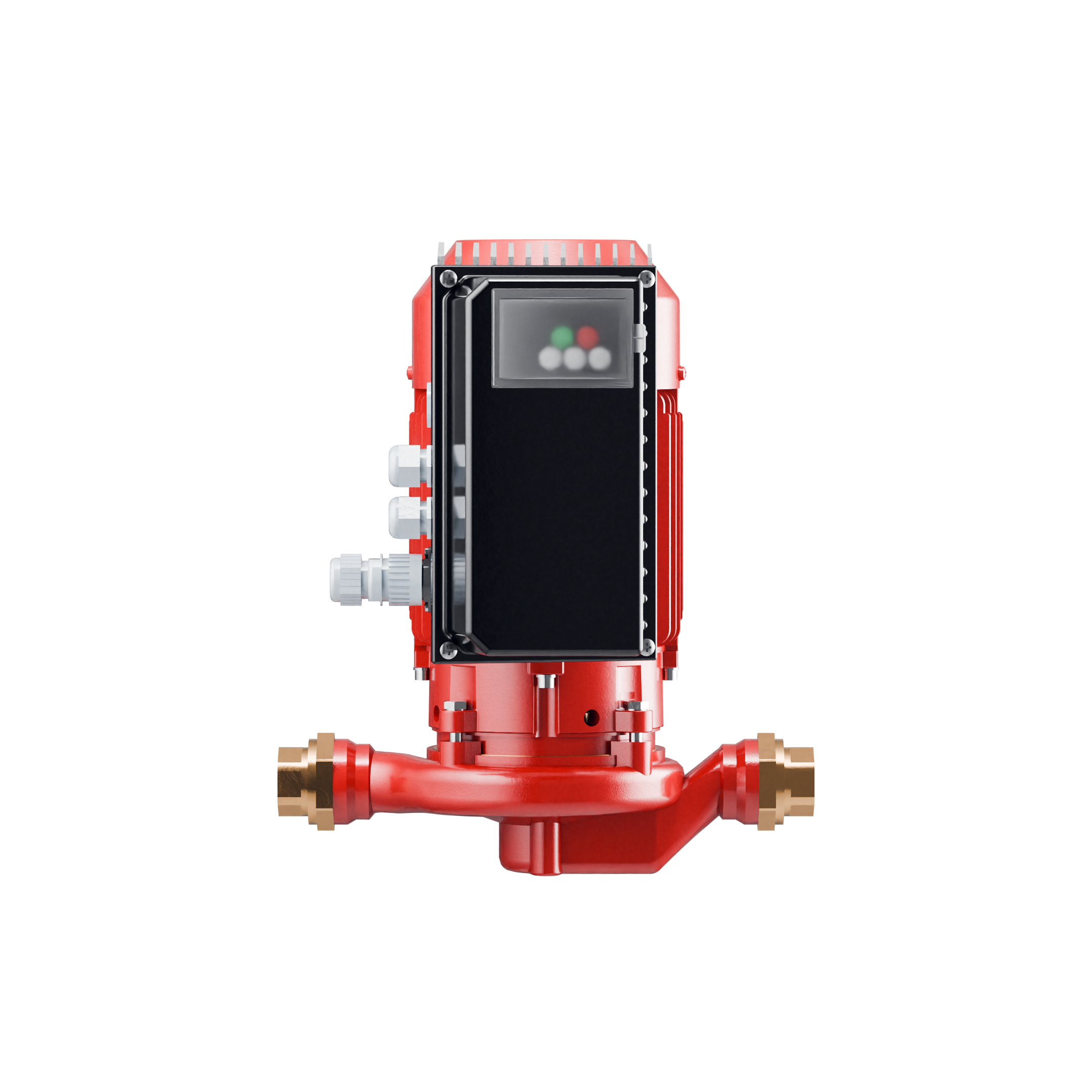

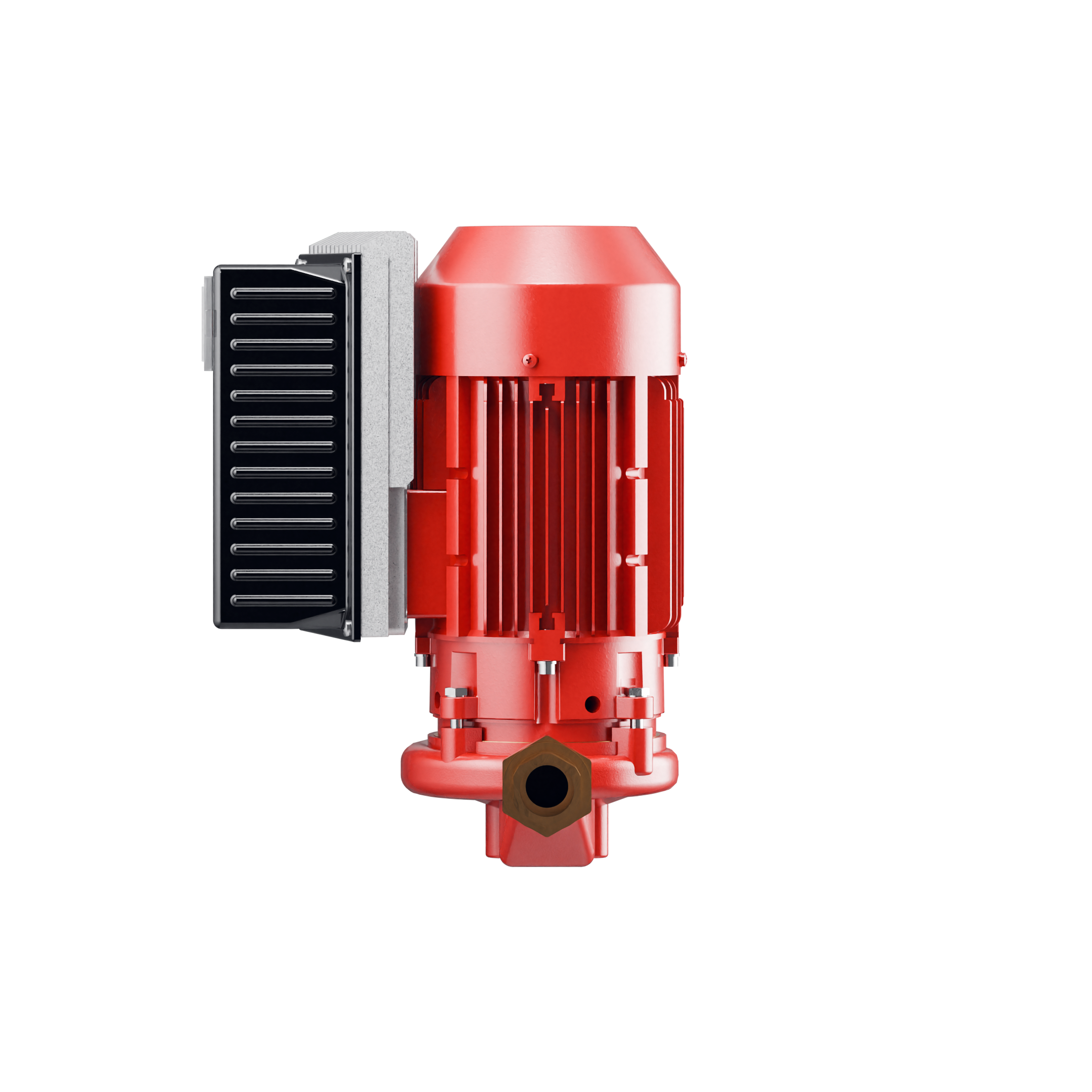

SC Pump Series

Reliable variable frequency drive (VFD) controlled pumps for circulation and domestic water systems where lower pumping capacity is sufficient. Equipped with an SC frequency converter and a compact long-shaft Kolmeks electric motor.

Applications:

Building heating and cooling systems, industrial cooling water circulation, circulation systems, fire water systems, transfer and circulation of non-corrosive liquids, pulp and paper, boiler feed water systems, washing and rinsing systems, cooling and auxiliary systems in the marine industry.

Materials:

Pressure chamber: Stainless steel AISI316, Bronze CuSn10Zn2, Ductile iron EN-GJS-400, Grey cast iron EN-GJL-200

Impeller: Stainless steel AISI316, Bronze CuSn10Zn2, Grey cast iron EN-GJL-200, Noryl™ Resin GFN2

Flange shaft: AISI329

Fluids:

Clean liquids, heat transfer fluids, process water, general industrial circulation liquids, hot and cold water, domestic water, neutral and slightly acidic solutions, cleaning agents (slightly alkaline), cooling water, boiler feed water, condensate water, glycol mixtures, diluted washing solutions.

Technical specifications

Models	AE SC, AEP SC, AL SC, ALP SC, ALS SC, L SC, LP SC
Maximum pump head	20,9 m
Liquid temperature range	-10…+90 C
Flow rate	0,1 l/s (0,4 m³/h) … 19,4 l/s (70 m³/h)
Motor power range	0,08 kW … 0,75 kW
