Pumpselector
Choosing the right pump model for your specific requirements.

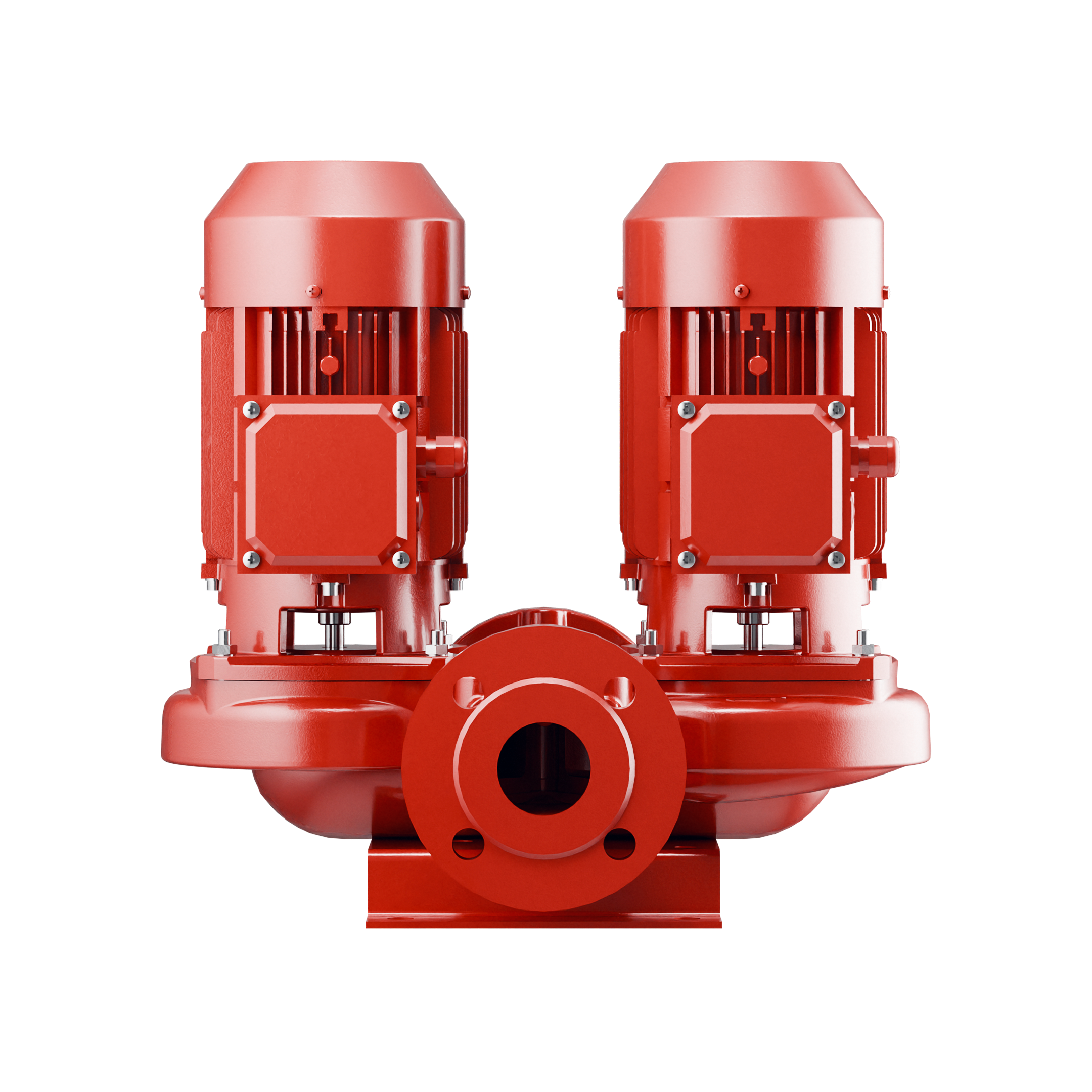

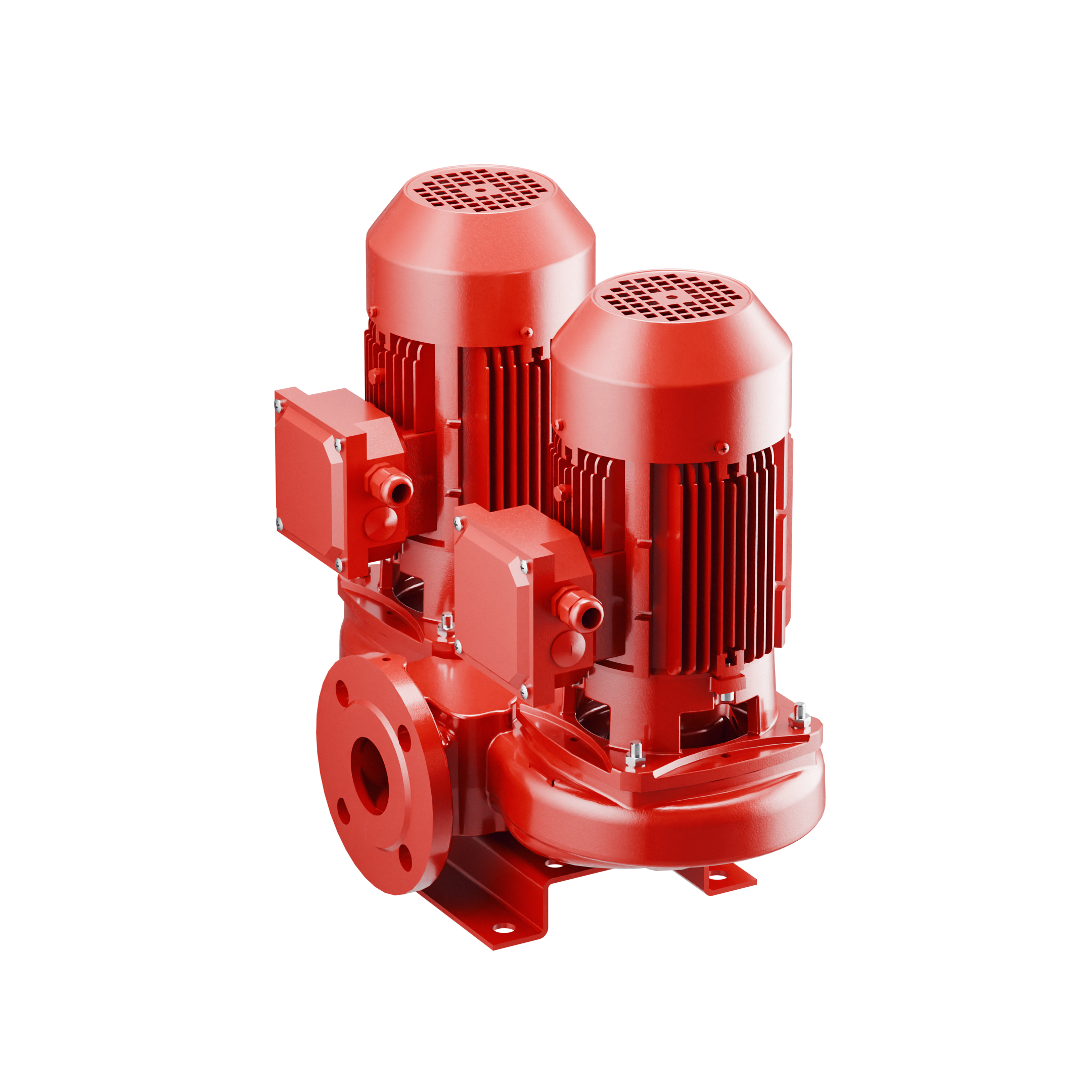

Fixed Speed twin Pumps
Reliable and space-saving twin pumps for systems requiring redundancy, wide range of pumping capacity or high flow rates.
Applications:
Heating networks, primary and secondary circuits in district heating, building heating and cooling systems, cooling water circulation, fire water pumping, industrial cooling water circulation, cooling water circuits in energy production, general industrial water circulation, residential buildings, commercial properties, shops and shopping centres, schools and daycare centres
Materials:
Pressure chamber: Grey cast iron EN-GJL-200
Impeller: Stainless steel AISI316, Bronze CuSn10Zn2, Grey cast iron EN-GJL-200, Noryl™ Resin GFN2
Flange shaft: AISI329
Fluids:
Clean liquids, glycol mixtures, hot and cold water, boiler feed water, condensate water
Technical specifications
| Models | |
|---|---|
| Motor power range | 0,05 kW x2 … 22 kW x2 |
| Nominal pressure | PN10 |
| Flow rate | |
| Maximum pump head | 44,9 m |
| Liquid temperature range | -15 … +120°C |
